Parts layout diagram for v8s rear axle?

ajpetty1

New member
As above, can anyone provide me with a parts component layout diagram of the whole rear axle on the jaguar f type v8s mainly offside rear. Pic showing all the components like track arm, wishbone etc. Any help is much appreciated thanks.

Here's a few:


Attachments

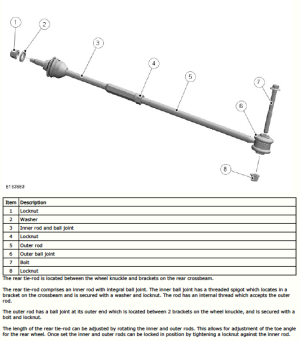

  • Screen Shot 2019-10-23 at 14.17.04.png
    Screen Shot 2019-10-23 at 14.17.04.png
    83.2 KB · Views: 975

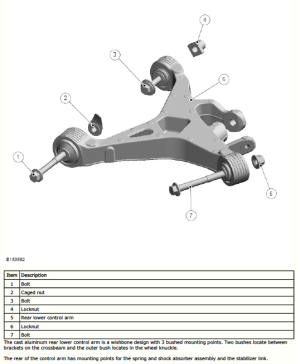

  • Screen Shot 2019-10-23 at 14.16.50.png
    Screen Shot 2019-10-23 at 14.16.50.png
    98.1 KB · Views: 975

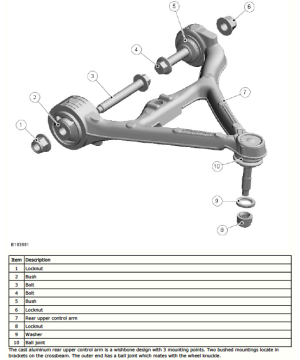

  • Screen Shot 2019-10-23 at 14.16.35.png
    Screen Shot 2019-10-23 at 14.16.35.png
    113 KB · Views: 975

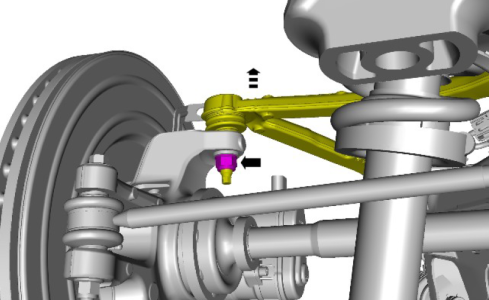

  • Screen Shot 2019-10-23 at 14.14.45.png
    Screen Shot 2019-10-23 at 14.14.45.png
    293.9 KB · Views: 975

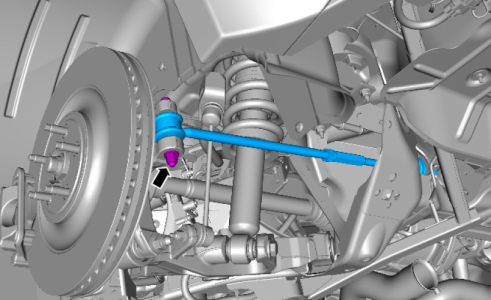

  • Screen Shot 2019-10-23 at 14.14.19.png
    Screen Shot 2019-10-23 at 14.14.19.png
    371.4 KB · Views: 975

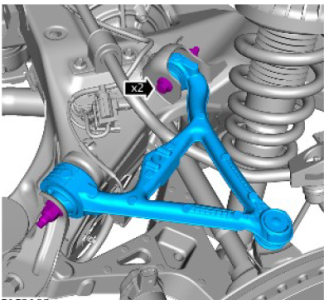

  • Screen Shot 2019-10-23 at 14.12.02.png
    Screen Shot 2019-10-23 at 14.12.02.png
    196.1 KB · Views: 975
